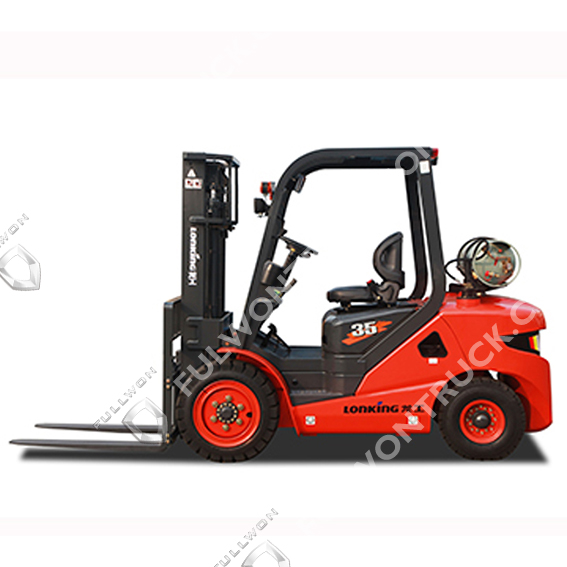

LG35GLT
Fullwon
MODEL | LG35GLT |
Powertype | Gasoline/LPG |
Rated capacity (Kg) | 3500 |
J Load centre (mm) | 500 |
h1 STD Max lifting height (mm) | 3000 |
h3 Free lifting height (mm) | 170 |
L5 *W*T STD Forksize (mm) | 1070×125×50 |
Masttilt angle (deg) | 6/12 |
L3 Front overhang (mm) | 498 |
L4 Rear overhang (mm) | 580 |
R1 Min.turning radius (mm) | 2530 |
Min.intersecting aisle (mm) | 4225 |
Speed (load/unload) | |
Max.traveling speed (km/h) | 20 |
Max. lifting speed (mm/s)(load/unload) | 400/420 |
Max. gradient (%) | 20 |
STD Dead weight (kg) | 4635 |
S/P Tread(front/rear)(mm) | 1030/980 |
L2 Axle distance (mm) | 1750 |
Min.ground clearance | |
m2 Mast (mm) | 130 |
m1 Frame (mm) | 165 |
Optinal Engine | |||
Engine Model | GK25 | K25 | GQ-4Y |
Rated Power(kw/rpm) | 35.6/2100 | 35.6/2100 | 41/2800 |
Max.Torque(Nm/rpm) | 176.5/1600 | 176.5/1600 | 161/1800~2200 |
Number of Cylinders | 4 | 4 | 4 |
Displacement (L) | 2.488 | 2.488 | 2.237 |
